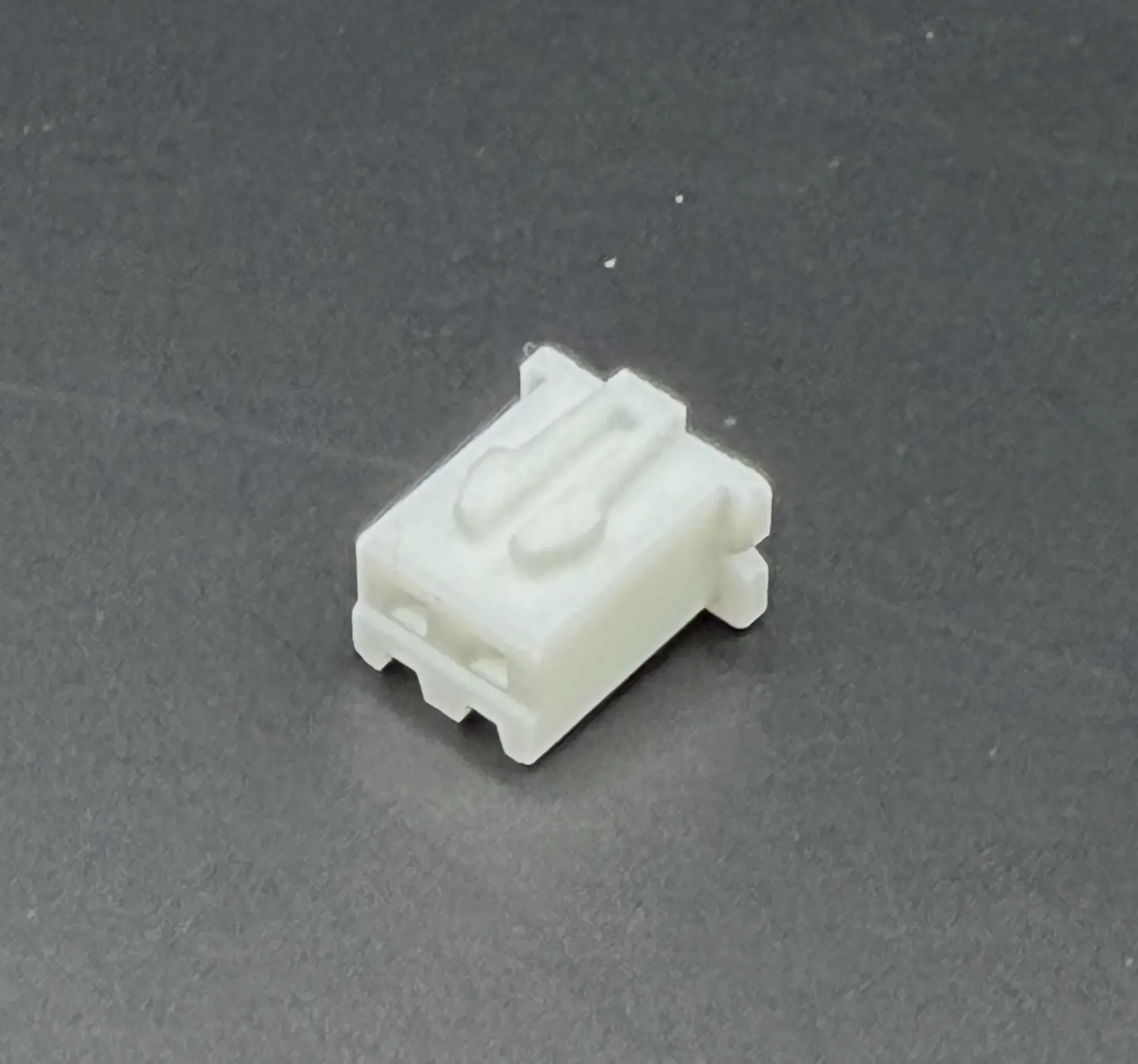

The JST XHP-2 is a 2-pin, 2.5 mm pitch female crimp housing for wire-to-board applications.
- Series: XH
- Type: Wire-to-board female receptacle housing
- Positions: 2-pin / 2-way
- Pitch: 2.5 mm
- Termination: Crimp
- Configuration: Single row
- Mounting: Free-hanging / cable mount
- Material: PA6 Nylon, UL94V-0
- Colour: Natural white
- Current rating: 3 A (AWG #22)
- Voltage rating: 250 V
- Operating temperature: −25°C to +85°C
- Application: PCB and wire-to-board connections
- Manufacturer: JST
