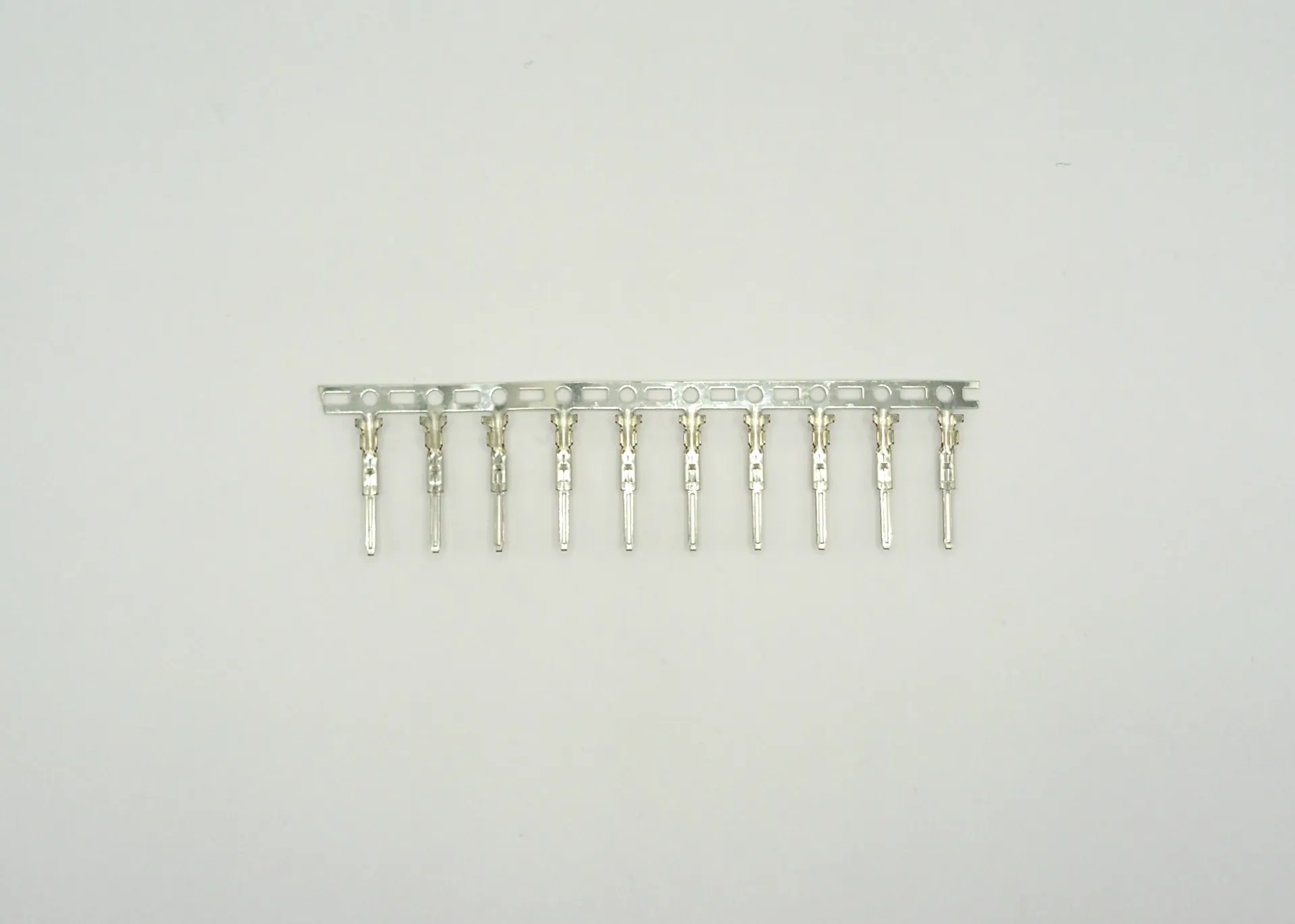

A pin contact with crimp termination. The SM series are 2.5mm pitch, wire-to-wire connectors that perform reliably in high-density, small current applications.
Sold as loose, individual crimps. Discounts available for purchasing in bulk quantities. See pricing chart for full details.
- Type: Male pin crimp terminal
- Series Compatibility: JST SM and RCY series connectors
- Wire Gauge: 22 to 28 AWG (0.08 to 0.33 mm²)
- Current Rating: 3 A max
- Voltage Rating: 250 V AC/DC max
- Operating Temperature: -25°C to +85°C
- Size: 0.08-0.33mm
- Material & Finish: Phosphor bronze with tin-plated finish
- Function: wire-to-wire connector systems
- Manufacturer: JST
