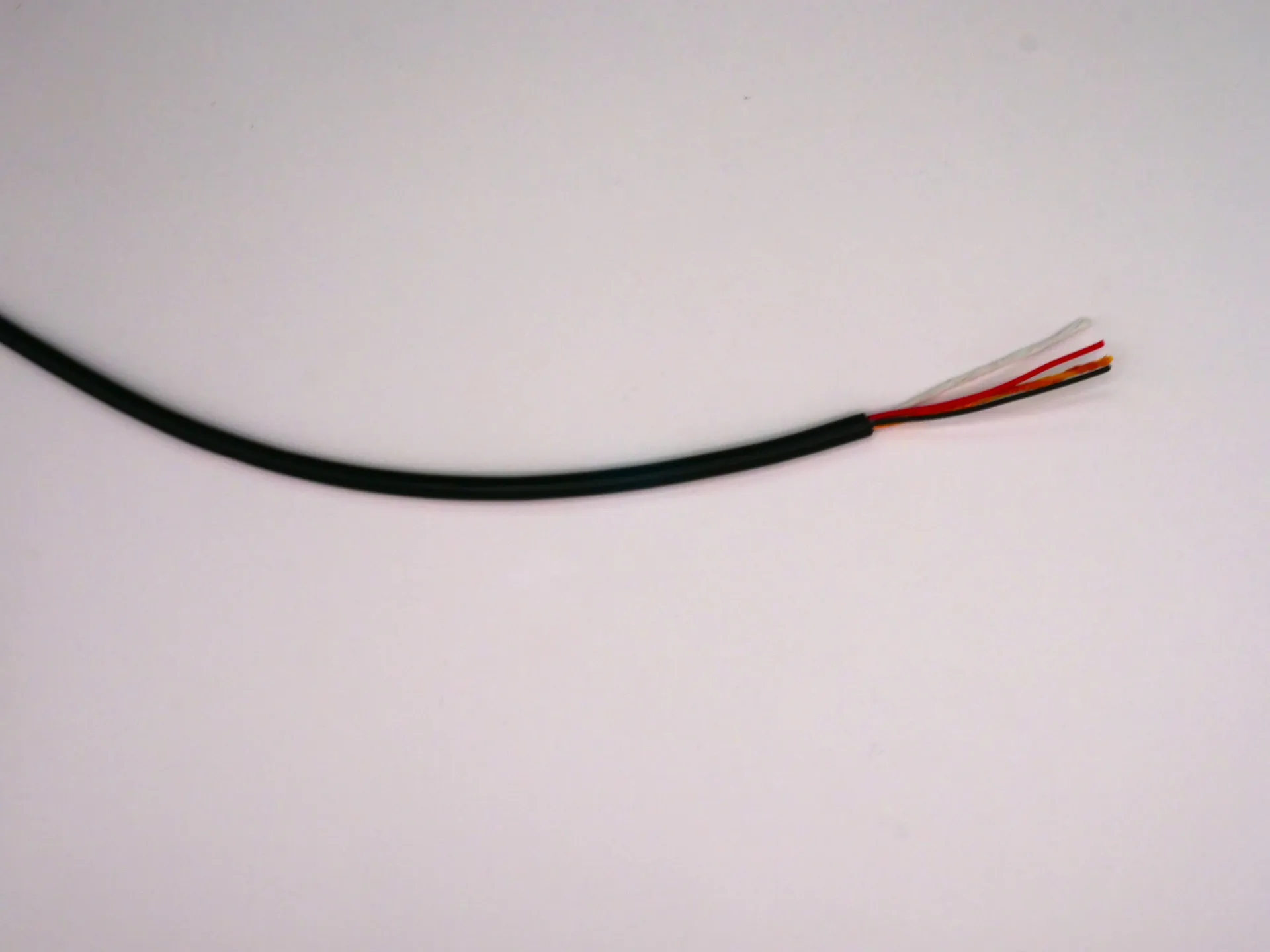

This rugged four-core screened camera and video cable features colour-coded power, video, and audio conductors enclosed in an overall shield and heavy-duty jacket.
Type: 4-Core overall screened composite video, audio, and power CCTV Camera cable
Length: Sold by the metre
Colour: Black outer protective sheath with Red, Black, Yellow, and White core conductors
Function: Delivers DC operating power, returns system ground, and transmits analogue composite video and audio or reverse-gear trigger signals from rear-view or side-view cameras to the in-cab display monitor without signal degradation
Design: Four flexible stranded copper conductors, colour-coded PVC or polyolefin insulation, cores twisted together with an overall aluminium-polyester foil or tinned copper wire braid screen.
Connector size: 4-core cable
Ends: Cut ends prepared for stripping and termination to 4-pin screw-locking waterproof aviation connectors, waterproof mini-DIN connectors, or direct crimp/solder pin termination to vehicle junction boxes
Protection: 100% foil and braid screening prevents alternator whine, ignition interference, and heavy electrical noise
Application: Commercial vehicle reversing cameras, blind-spot monitoring, agricultural plant CCTV, heavy transport surveillance
