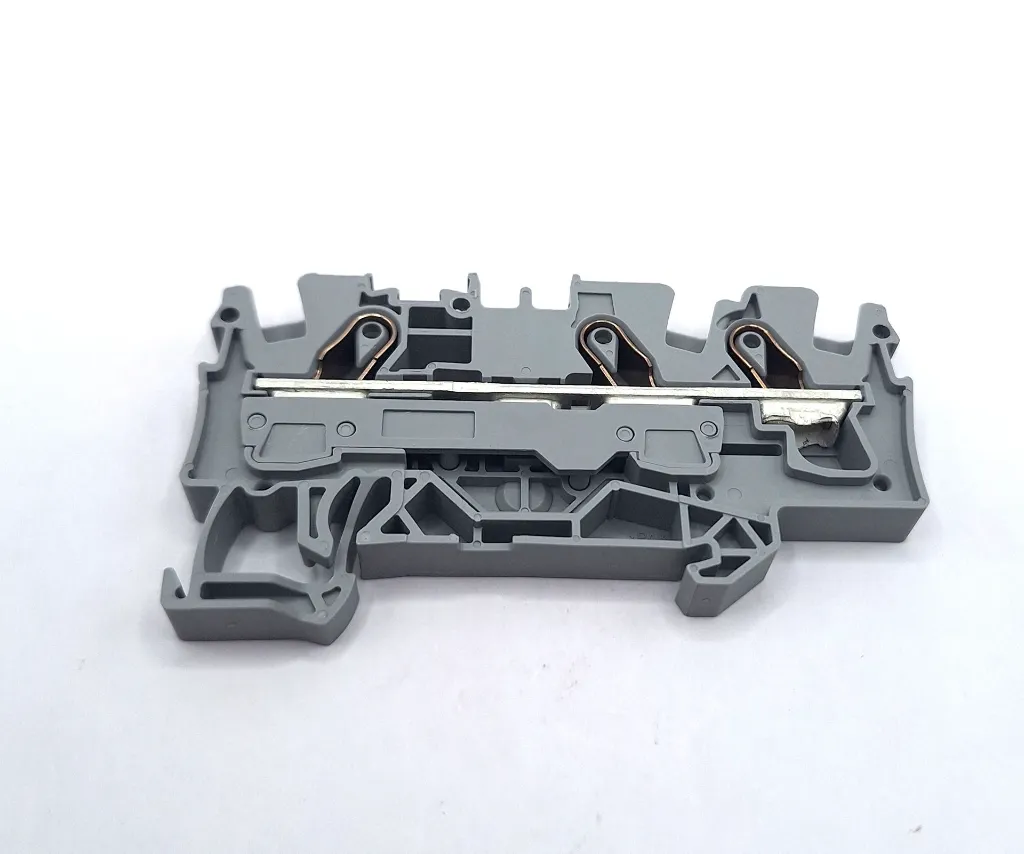

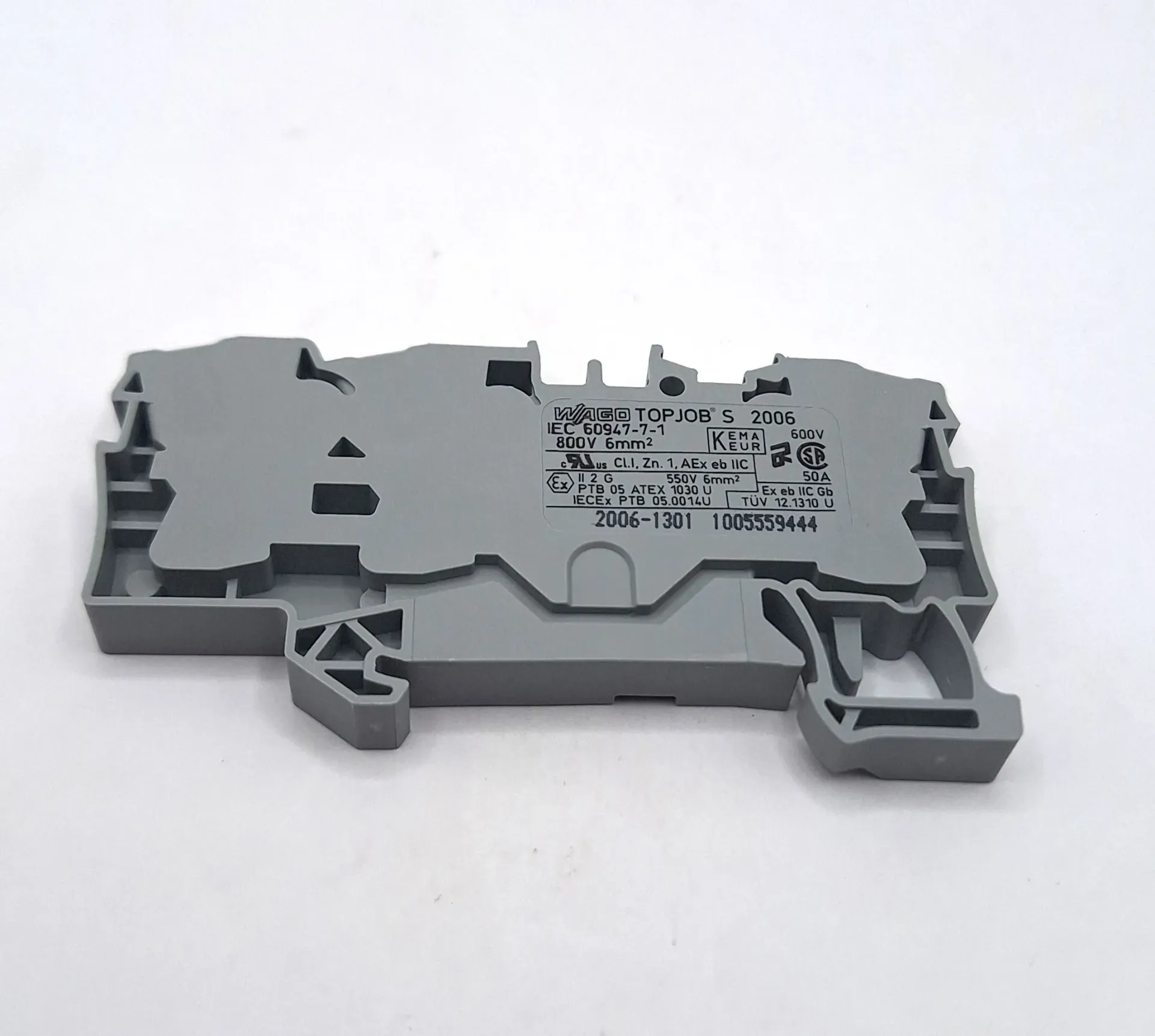

WAGO TopJob S Series DIN Rail Terminal Block - 6.0mm - 3 Way

Part Number: 2006-1301

Manufacturer: WAGO

Series: TOPJOB® S, 2006 Series

Type: 3-conductor feed-through terminal block

Colour: Grey

Nominal Conductor Size: 6 mm²

Connection Type: Push-in CAGE CLAMP® spring connection

Mounting: 35 mm DIN rail (35 × 7.5 mm or 35 × 15 mm)

Rated Voltage: 800 V AC/DC (IEC)

Rated Current: 41 A (rated); up to 57 A depending on conductor size and conditions

Insulation Material: PA66 polyamide

Function: Connects three conductors at a single electrical potential

Application: Industrial control panels, electrical distribution and machinery

Features: Centre and side marking; suitable for Ex e II applications
