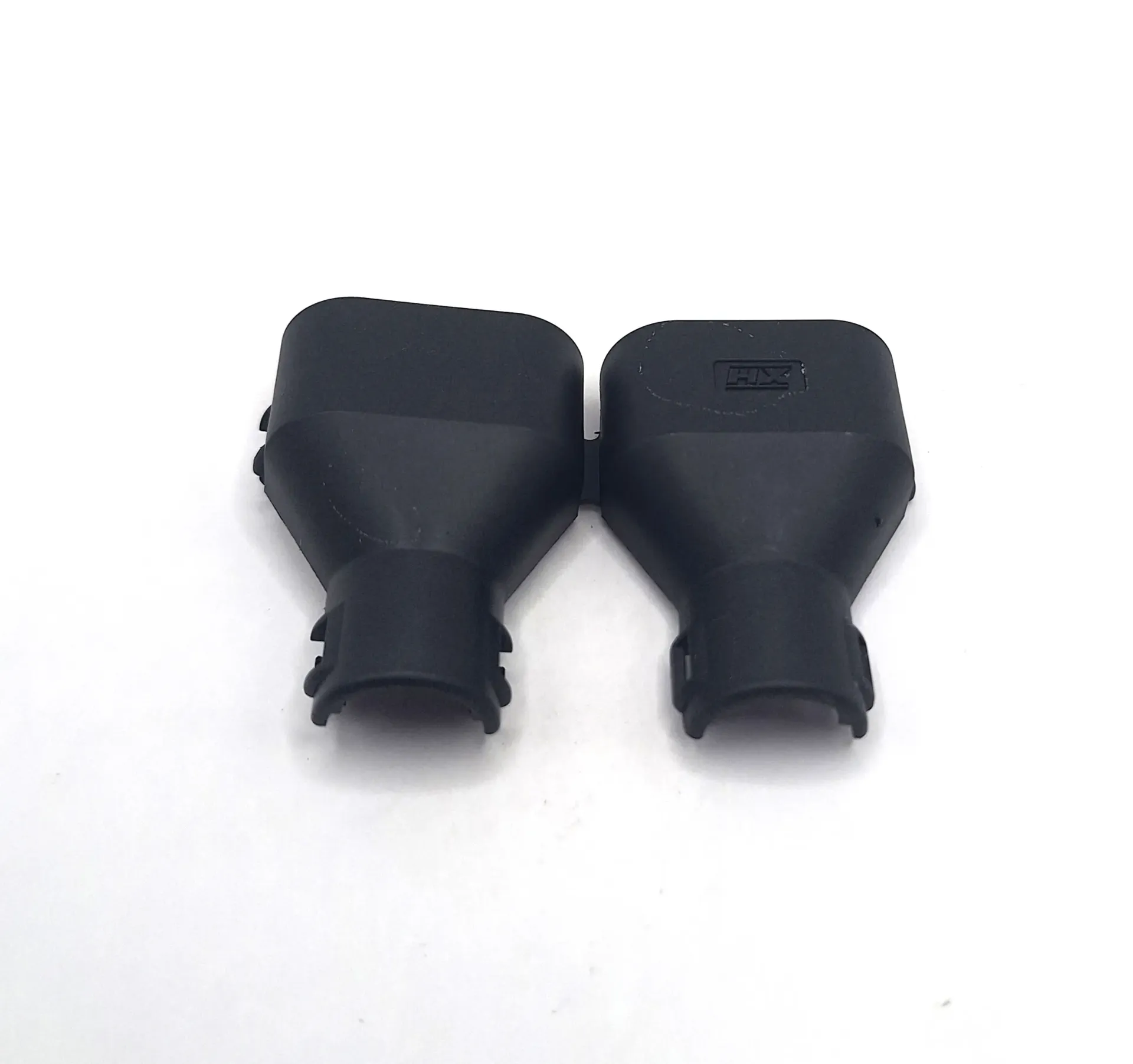

8-way ABB Harnessflex Straight Deutsch DT Series Adaptor
The ABB Harnessflex® is a connector interface designed to clip over conduit and connect the Deutsch DT series electrical connectors.
- Type: Hinged connector interface fitting / backshell
- Brand / Series: Harnessflex®
- Conduit Size: NC12 / NW10 (nominal conduit size 12 / 10 mm)
Configuration: Straight, 8-way interface
Compatibility: Deutsch DT 8-way connector, e.g. DT06-8SA
Colour: Black
Material: Polyamide (nylon)
Dimensions: Approximately 40 × 25 × 30 mm
Temperature Rating: −40°C to +120°C
Features: Hinged design, high pull-off strength, high UV resistance
Application: Secures protective conduit to an automotive connector, helping protect wiring harnesses from mechanical and environmental damage
Protection: RoHS compliant; IP40 Ingress Protection.
Manufacturer: ABB Installation Products
MPN: CI12-DT8
SKU: 7-00606
