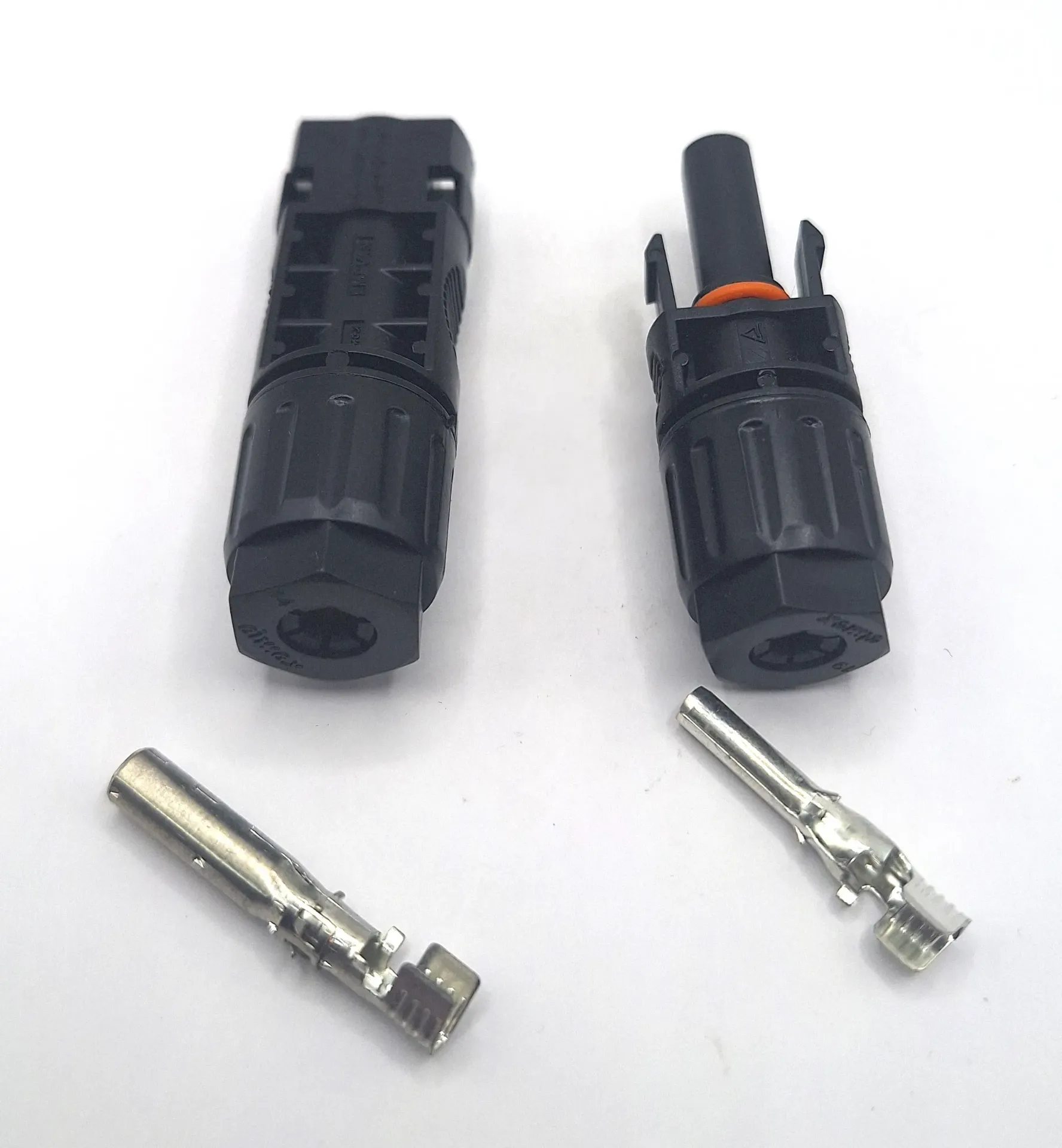

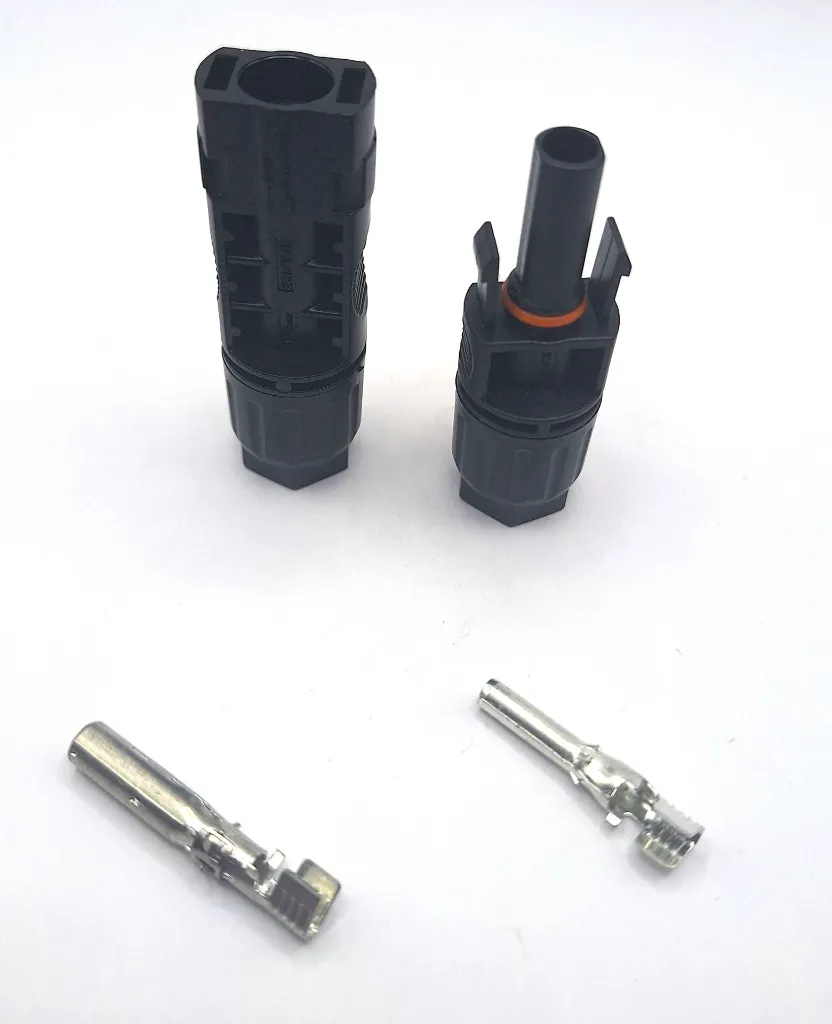

Staubli Panel Mount MC4 Connectors - 4.0-6.0mm - 30A 1kVDC

Name: Staubli Panel Mount MC4 Connectors - 4.0-6.0mm - 30A 1kVDC
SKU: 7-99067
Price: 2.5 GBP
Availability: InStock

Manufacturer: Stäubli

Manufacturer Part No.: 32.0078P0001 + 32.0079P0001

Type: MC4 photovoltaic (PV) connector

Configuration: Female panel-mount connector, supplied as a pair

Termination: Crimp

Cable Size: 4 mm² or 6 mm²

Voltage Rating: 1,000 V

Current Rating: 30 A

Mounting: Panel mount

Thread Size: M12

Ingress Protection: IP67 when mated

Temperature Range: -40°C to +90°C

Function: Secure, weather-resistant connection for photovoltaic/solar panel wiring.

SKU: 7-99067

Volume Discounts

Min. Qty	Price
1+ units	£ 2.50
10+ units	£ 2.38
25+ units	£ 2.31
50+ units	£ 2.25
100+ units	£ 2.19

£ 2.50

£ 8.18

Add to cart
