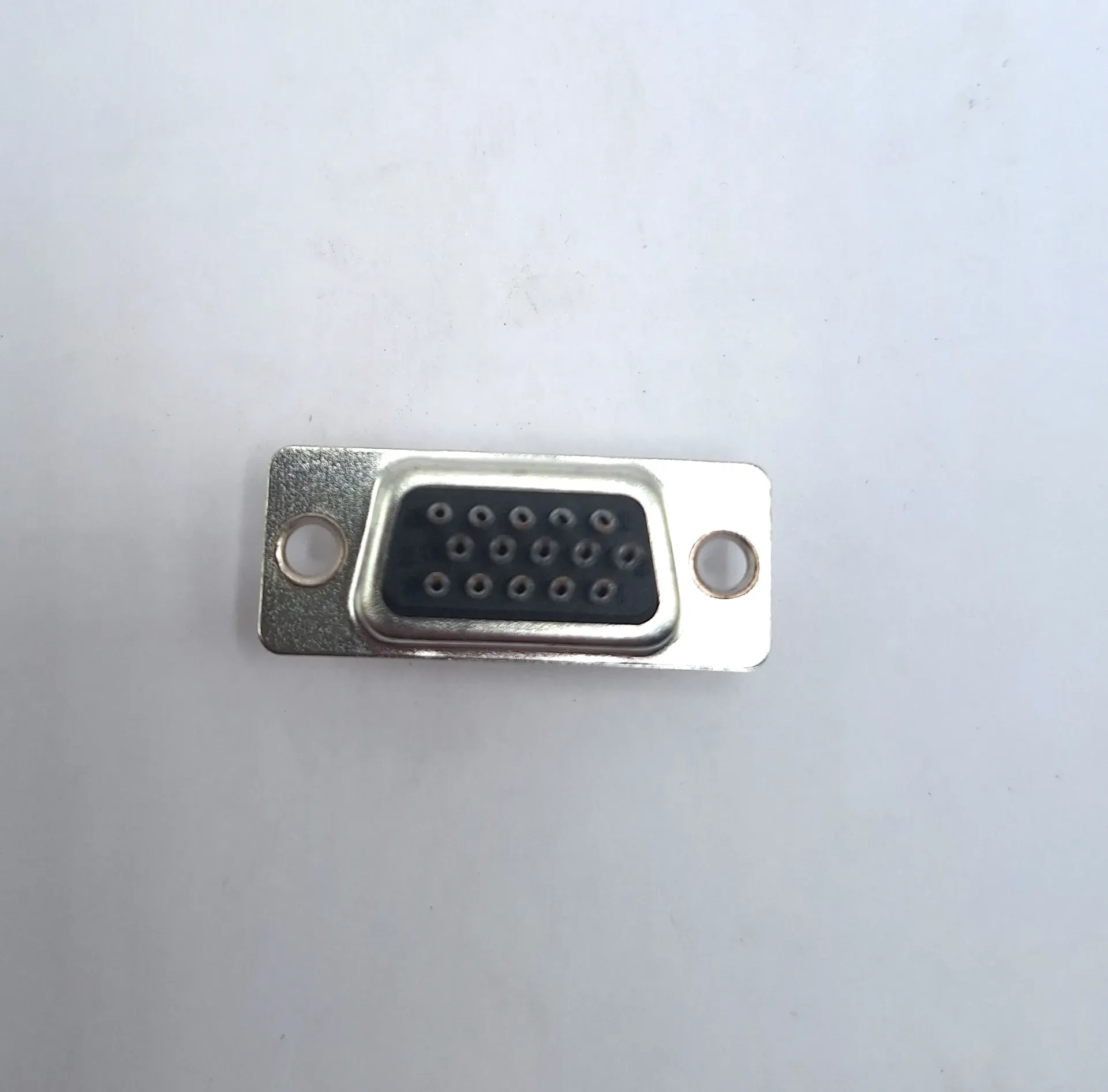

15 Way D Type Socket Connector - High Density - Triple Row - Solder Cup

  • Part number: 09561004704
  • Manufacturer: HARTING
  • Type: High-density D-Sub receptacle
  • Positions: 15-way / 15-pin
  • Gender: Female
  • Configuration: 3 rows
  • Termination: Solder cup
  • Mounting: Cable / panel mount
  • Shell: Steel, nickel-plated
  • Contacts: Gold-plated copper alloy
  • Current rating: 2 A
  • Pitch: 2.29 mm
  • Operating temperature: −40°C to +85°C
  • Brief description: 15-pin female high-density D-Sub connector with solder-cup termination and a metal shell, suitable for signal and data connections.
SKU: 7-00781
Volume Discounts
Min. Qty Price
1+ units £ 2.53
10+ units £ 2.40
25+ units £ 2.34
50+ units £ 2.27
100+ units £ 2.21
£ 2.53 £ 2.53
£ 1.94

Add to cart
Terms and Conditions
UK shipping £6.50 next day delivery as standard.
