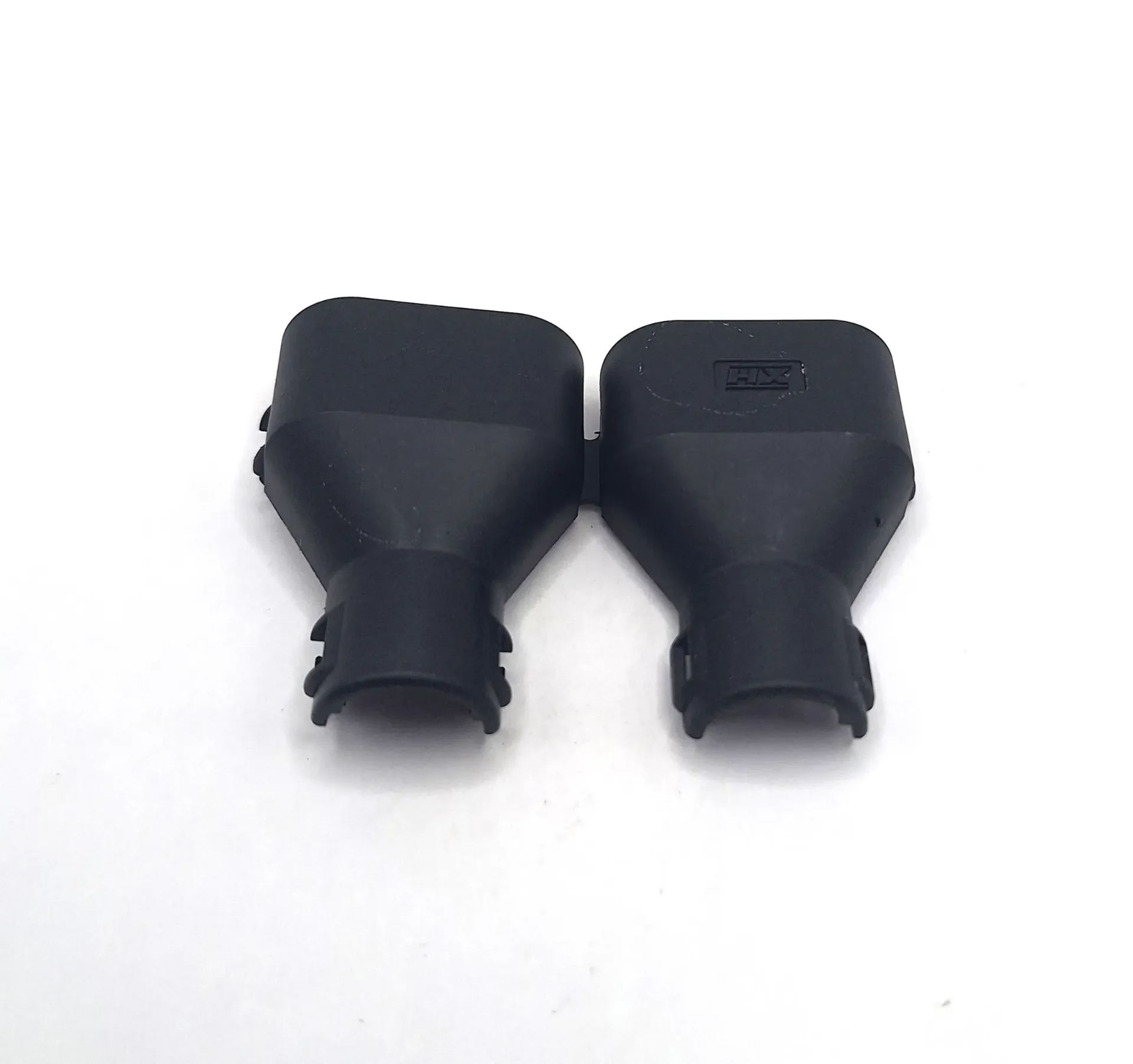

CI12-DT8 - 8 Way Straight DT Adaptor - NC12

  • Part Number: CI12-DT8

  • Manufacturer: ABB Harnessflex

  • Series / Type: External hinged connector interface

  • Configuration: Straight, 8-way interface

  • Compatibility: Deutsch DT 8-way connector, e.g. DT06-8SA

  • Colour: Black

  • Material: Polyamide (nylon)

  • Conduit Size: NC12 / NW10 (nominal conduit size 12 / 10 mm)

  • Dimensions: Approximately 40 × 25 × 30 mm

  • Temperature Rating: −40°C to +120°C

  • Ingress Protection: IP40

  • Features: Hinged design, high pull-off strength, high UV resistance

  • Application: Secures protective conduit to an automotive connector, helping protect wiring harnesses from mechanical and environmental damage

  • Compliance: RoHS compliant.

SKU: 7-00606
Volume Discounts
Min. Qty Price
1+ units £ 2.88
10+ units £ 2.74
25+ units £ 2.66
50+ units £ 2.59
100+ units £ 2.52
£ 2.88 £ 2.88
£ 2.21

Add to cart
